CT120
Panoramic Sliding Window
A six-track panoramic system with slim 26 mm frame sightlines, high-capacity drainage and sash loads up to 250 kg.
Request project reviewSystem overview
Designed as a complete opening.

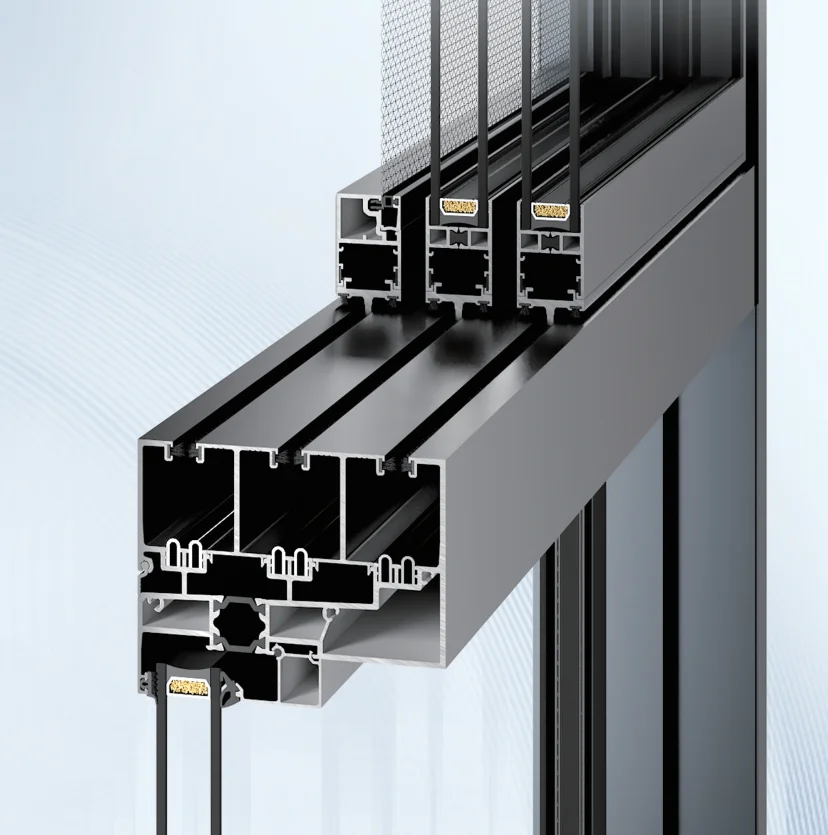

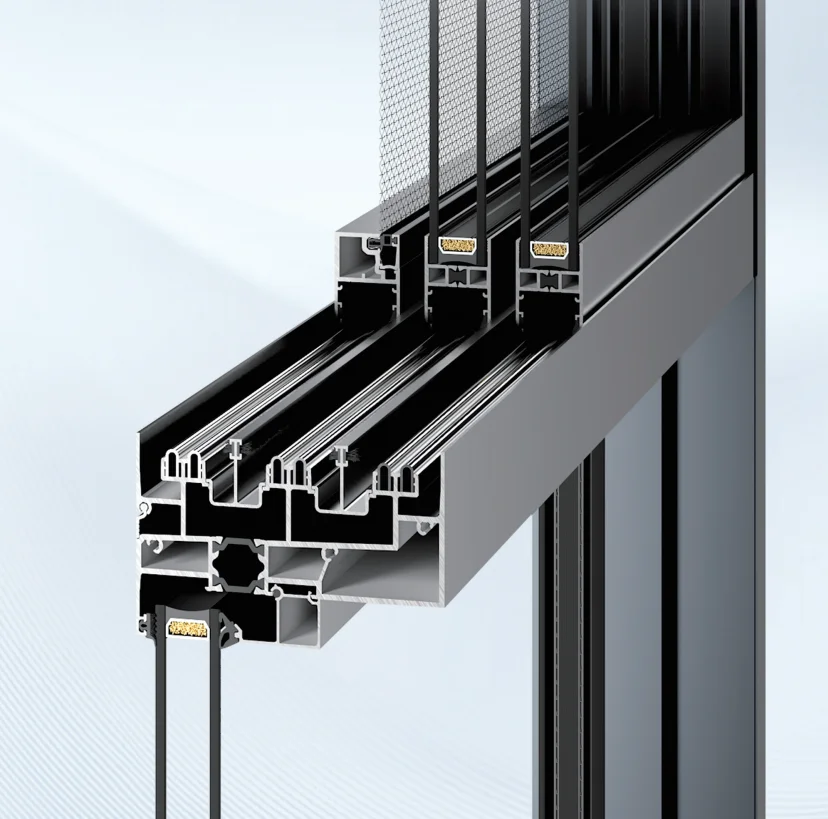

CT120 pairs double-row stainless-steel tracks with high-load rollers for smooth movement. Multiple gaskets and wool piles support basic air and water tightness, while removable sashes and track covers simplify cleaning.
- Maximum sash load up to 250 kg
- 26 mm visible frame face
- 32 mm slim meeting stile
- Removable sash and track covers
Available specifications
- System depth
- 120 mm
- Track
- Six-track, double-row stainless steel
- Track wall
- 2.0 mm standard
- Sash capacity
- Up to 250 kg
Final dimensions, performance and component selection are confirmed against the project drawings and local requirements.
