CS85
Tilt & Turn Window
A next-generation inward-opening window with aligned 6 mm sightlines, a 34 mm thermal break and four-stage sealing.
Request project reviewSystem overview
Designed as a complete opening.
CS85 unifies fixed and opening sections through a ribless mullion structure. The detachable screen opens to 90 degrees for practical cleaning and maintenance, while the modular platform supports efficient fabrication and future servicing.
- 6 mm aligned frame-to-sash gap
- Four-stage joint sealing
- Detachable 90-degree insect screen
- Compatible with minimalist and French-style facades

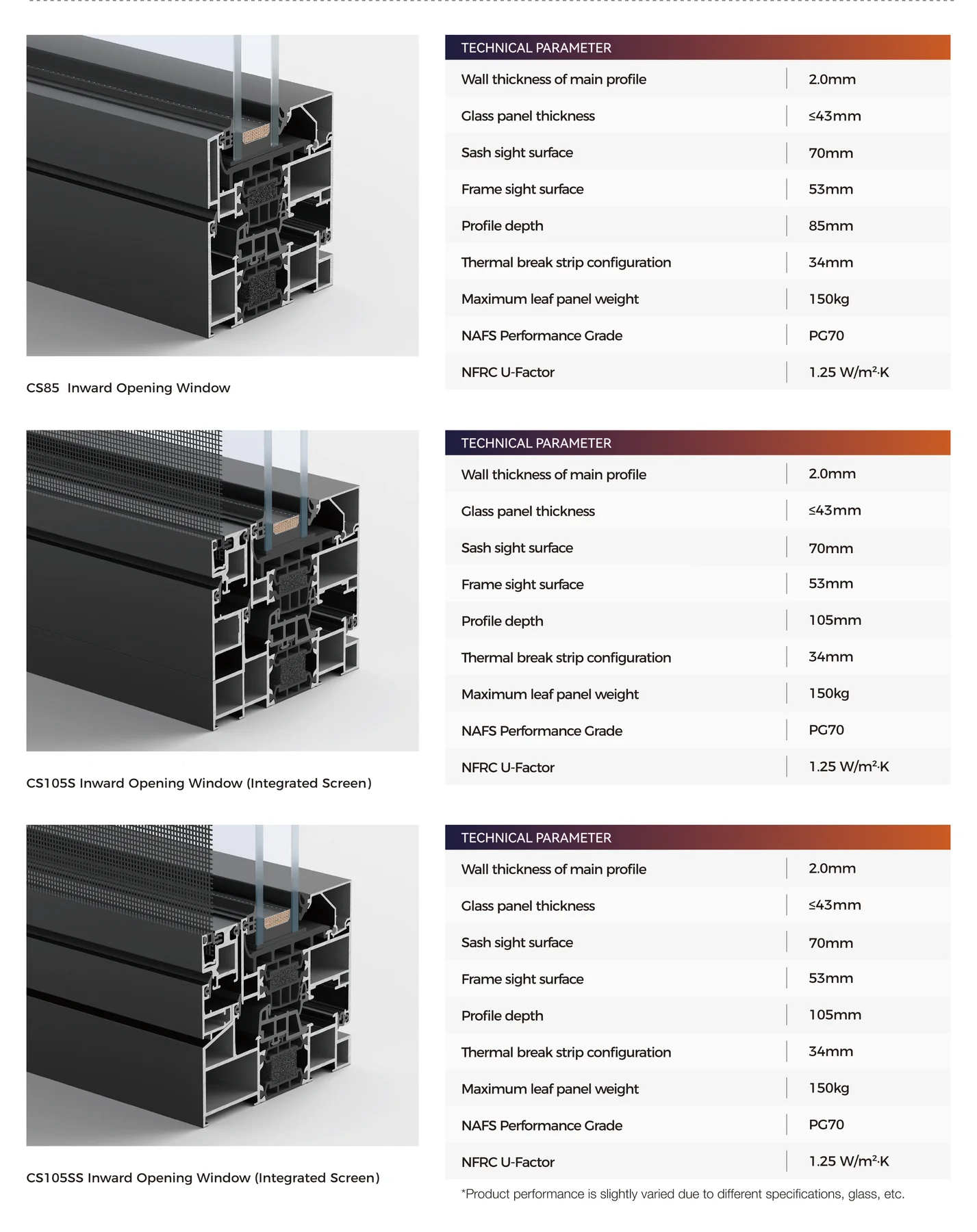

Available specifications
- Opening
- Tilt & turn / inward opening
- Thermal break
- 34 mm
- Sealing
- Four-stage joint sealing
- System
- Modular CS platform
Final dimensions, performance and component selection are confirmed against the project drawings and local requirements.
